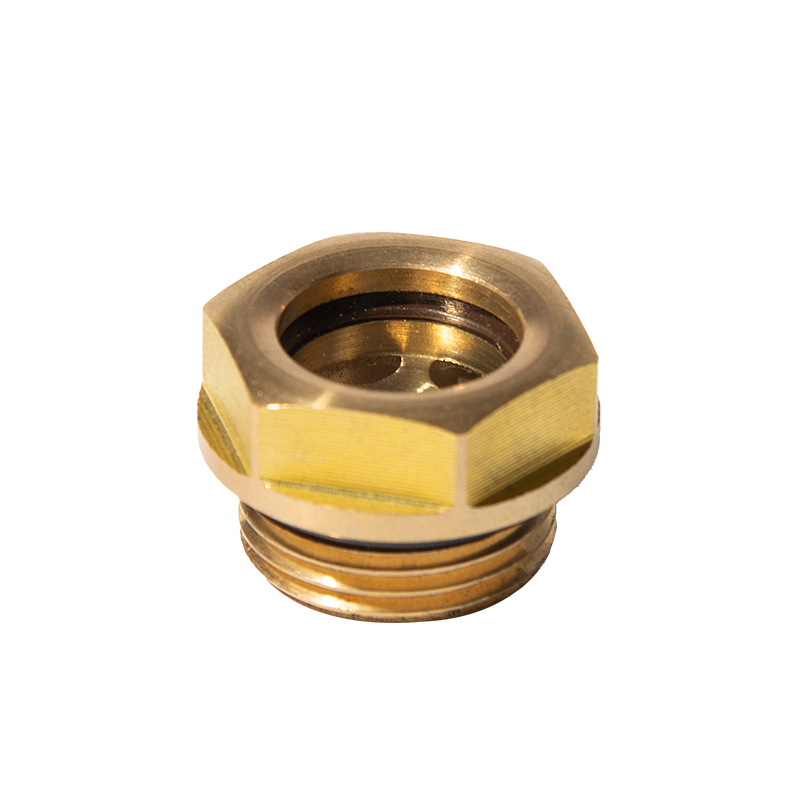

Material: Brass 58-3
Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)
Sealing ring type: fluorine rubber FKM70°, with brown as the main color. (Custom optional, NBR, silica gel, PC, EPDM).
Sealing ring at thread: NBR。 (Customized optional fluorine glue, silicone, PC, EPDM)
Recommended operating temperature: -
Recommended working pressure: lower
Brass oil mark metric thread |
|||||||
Ltem NO. |
Size |
A(mm) |
L(mm) |
L1(mm) |
L2(mm) |
D(mm) |
ZZ(mm) |
ZYZZ-TTM10 |
M10 |
M10*1 |
15 |
7 |
1.7 |
14 |
16 |
ZYZZ-TTM12 |
M12 |
M12*1.5 |
15 |
7 |
2 |
14 |
17 |
ZYZZ-TTM14 |
M14 |
M14*1.5 |
15 |
7.5 |
2 |
17 |
19 |
ZYZZ-TTM16 |
M16 |
M16*1.5 |
16.5 |
8 |
2 |
19 |
22 |
ZYZZ-TTM18 |
M18 |
M18*1.5 |
16.5 |
8 |
2 |
19 |
22 |
ZYZZ-TTM20 |
M20 |
M20*1.5 |
16.5 |
8 |
2 |
22 |
25 |
ZYZZ-TTM22 |
M22 |
M22*1.5 |
16.5 |
8 |
2 |
24 |
27 |
ZYZZ-TTM24 |
M24 |
M24*1.5 |
16.5 |
8 |
2 |
24 |
29 |
ZYZZ-TTM26 |
M26 |
M26*1.5 |
17.5 |
8.5 |
3 |
27 |
32 |
ZYZZ-TTM27 |
M27 |
M27*1.5 |
16 |
8 |
2 |
27 |
32 |
ZYZZ-TTM30 |
M30 |
M30*1.5 |
16.5 |
8 |
2 |
30 |
35 |
ZYZZ-TTM33 |
M33 |
M33*1.5 |
17.5 |
9 |
2.2 |
32 |
38 |
ZYZZ-TTM36 |
M36 |
M36*1.5 |
17.5 |
9 |
2.2 |
36 |
42 |
ZYZZ-TTM42 |
M42 |
M42*1.5 |
17.5 |
9 |
2 |
42 |
48 |
ZYZZ-TTM48 |
M48 |
M48*1.5 |
20 |
10 |
2.5 |
48 |
55 |
ZYZZ-TTM60 |
M60 |
M60*2 |
28 |
14 |
3.5 |
64 |
71 |
Brass oil standard thread inch and non-standard thread |
|||||||
ZYZZ-TTF12 |
M12 |
M12*1.25 |
15 |
7 |
2 |
14 |
17 |
ZYZZ-TTF27 |
M27 |
M27*2 |
16 |
8 |
2 |
27 |
32 |
ZYZZ-TTF30 |
M30 |
M30*2 |
16.5 |
8 |
2 |
30 |
35 |
ZYZZ-TTF33 |
M33 |
M33*2 |
17.5 |
9 |
2.2 |
32 |
38 |
ZYZZ-TTF36 |
M36 |
M36*2 |
17.5 |
9 |
2.2 |
36 |
42 |
ZYZZ-TTF42 |
M42 |
M42*2 |
17.5 |
9 |
2 |
42 |
48 |
ZYZZ-TTF48 |
M48 |
M48*2 |
20 |
10 |
2.5 |
48 |
55 |
ZYZZ-TTG14 |
1/4’ |
G1/4 |
15 |
7.5 |
2 |
17 |
19 |
ZYZZ-TTG38 |
3/8’ |
G3/8 |
16.5 |
8 |
2 |
19 |
22 |
ZYZZ-TTG12 |
1/2’ |
G1/2 |
16.5 |
8 |
2 |
22 |
25 |
ZYZZ-TTG34 |
3/4’ |
G3/4 |
17.5 |
8.5 |
3 |
27 |
32 |
ZYZZ-TTG1 |
1’ |
G1 |
17.5 |
9 |
2.2 |
32 |
38 |
ZYZZ-TTG114 |
1-1/4’ |
G1-1/4 |
17.5 |
9 |
2 |
42 |
48 |
ZYZZ-TTG112 |
1-1/2’ |
G1-1/2 |
20 |
10 |
2.5 |
48 |
55 |
ZYZZ-TTG2 |
2’ |
G2 |
28 |
14 |
3.5 |
64 |
71 |
ZYZZ-TTG212 |
2-1/2’ |
G2-1/2 |
27 |
15 |
3.5 |
79 |
89 |

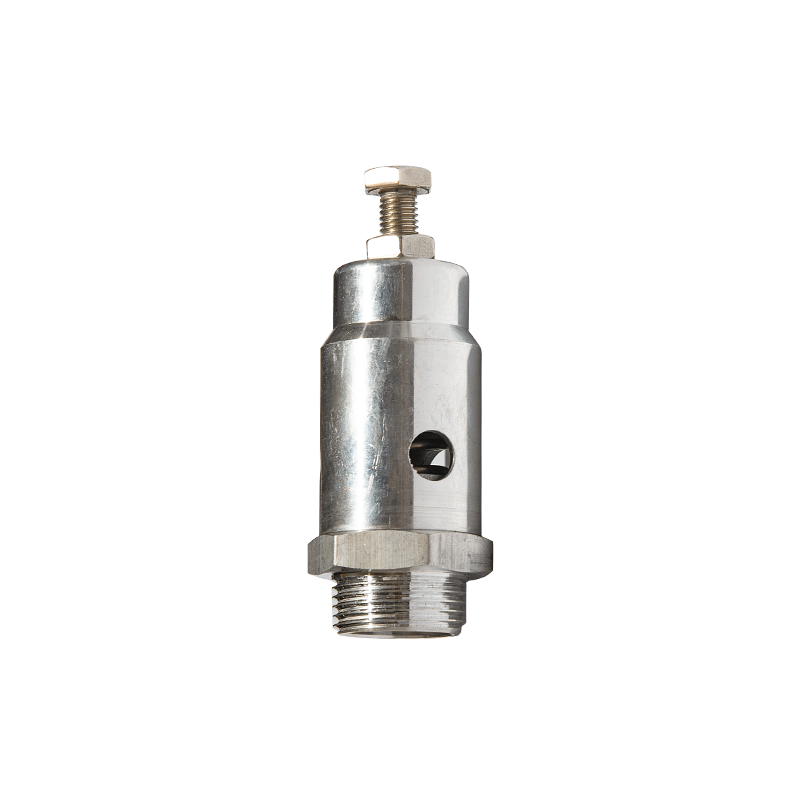

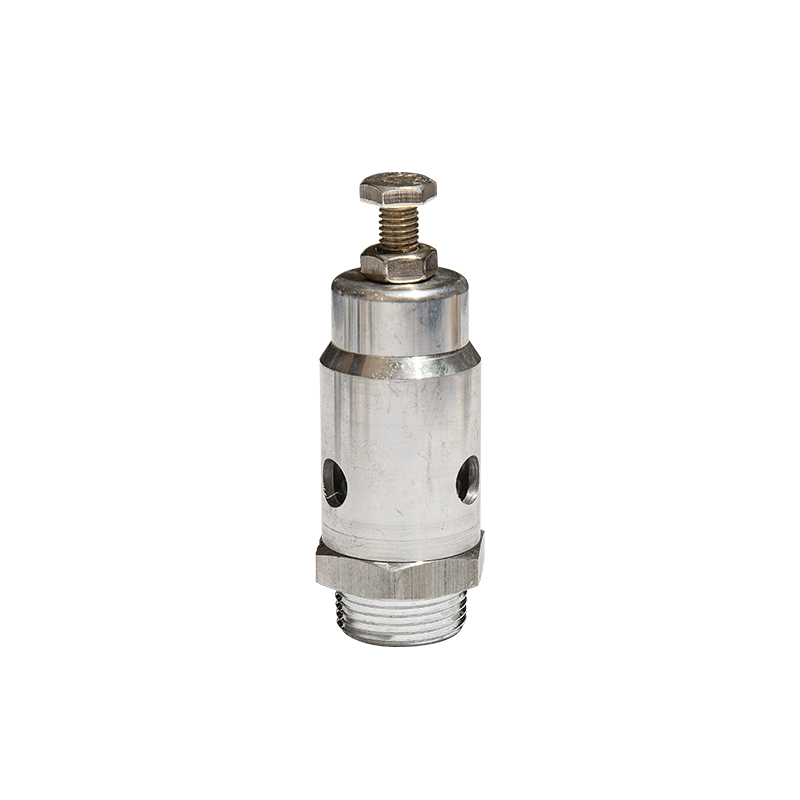

The product is used to automatically open the exhaust when the equipment box reaches the positive pressure strength. The opening strength can be adjusted, the operation is simple, and durable, and the use is wide.
Dedicated to Roots blower, agriculture, aquaculture, and a wide range of uses.
Aluminum alloy pressure relief valve | ||
Ltem NO. | Size | A(mm) |
ZYZZ-XYF38 | 3/8’ | G3/8 |
ZYZZ-XYF12 | 1/2’ | G1/2 |
ZYZZ-XYF34 | 3/4’ | G3/4 |
ZYZZ-XYF1 | 1’ | G1 |
ZYZZ-XYF114 | 1-1/4’ | G1-1/4 |
ZYZZ-XYF112 | 1-1/2’ | G1-1/2 |
ZYZZ-XYF2 | 2’ | G2 |
ZYZZ-XYF3 | 3’ | G3 |
ZYZZ-XYF4 | 4’ | G4 |
For a long time, gold, petroleum, mining, engineering, construction, chemical, machine tools, transportation, and other industries have provided supporting hydraulic equipment while providing high-quality domestic spare parts for the introduction of advanced equipment. The company has high-quality product design, technology, manufacturing, testing, marketing, management, and other types of talent complete manufacturing equipment, advanced testing instruments, and a reliable quality assurance system. Our products are all kinds of filters, oil filter series, air filter series, return oil, oil suction filter series, level meters, level control relays, pressure gauge switches, combination seal gaskets, oil filter trucks, and other products, but also for customers to design and manufacture all kinds of non-standard hydraulic parts.
Material: die-cast aluminum alloy
Function: It is used to balance the atmospheric pressure inside and outside the reducer to ensure the normal discharge of gas in the box when the reducer is running, and the product quality is reliable.
Die-cast aluminum oil plug | |||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | D(mm) |
ZYZZ-LYS16 | M16 | M16*1.5 | 13 | 34 | 35 |
ZYZZ-LYS18 | M18 | M18*1.5 | 13 | 34 | 35 |
ZYZZ-LYS20 | M20 | M20*1.5 | 13 | 34 | 35 |
ZYZZ-LYS38 | 3/8” | G3/8 | 13 | 34 | 35 |
ZYZZ-LYS12 | 1/2” | G1/2 | 13 | 34 | 35 |
Non-standard | |||||
ZYZZ-YSF20 | M20 | M20*2 | 13 | 34 | 35 |
ZYZZ-YSB20 | M20 | M20*2.5 | 13 | 34 | 35 |
ZYZZ-YSF16 | M16 | M16*2 | 13 | 34 | 35 |
ZYZZ-YSA16 | A16 | A16 | 13 | 34 | 35 |
ZYZZ-YSA20 | A20 | A20 | 13 | 34 | 35 |
