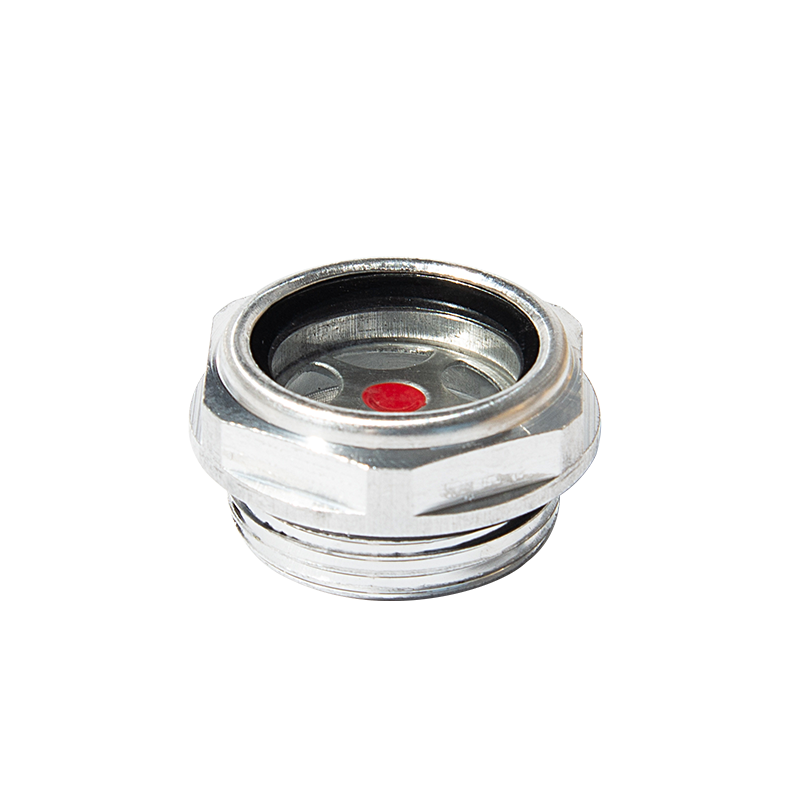

Round hexagonal glass
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)...
Material: Aluminum Alloy 6061, surface polished. Burr removal. Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)...
Material: Aluminum Alloy 6061, surface polished. Burr removal.
Observe the mirror material: glass. (Optional tempered glass, high borosilicate glass)
Seal ring type: nbr60 °, with black
Sealing ring at thread: NBR. (Customized optional fluorine glue, silicone, PC, EPDM)
Recommended operating temperature: -
Recommended working pressure: lower
Aluminium oil sight glass universal(metric thread) | ||||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | ZZ(mm) | GLASS |
ZYZZ-OGM10 | M10 | M10*1 | 14 | 7.5 | 1 | 13 | 14 | 3 |
ZYZZ-OGM12 | M12 | M12*1.5 | 16 | 7.5 | 1.5 | 17 | 20 | 3 |
ZYZZ-OGM14 | M14 | M14*1.5 | 16 | 7.5 | 1.5 | 17 | 20 | 2.5 |
ZYZZ-OGM16 | M16 | M16*1.5 | 16 | 7.5 | 1.5 | 19 | 22 | 3 |
ZYZZ-OGM18 | M18 | M18*1.5 | 16 | 8 | 2 | 19 | 22 | 3 |
ZYZZ-OGM20 | M20 | M20*1.5 | 15 | 8 | 1.5 | 24 | 26 | 3 |
ZYZZ-OGM22 | M22 | M22*1.5 | 15 | 8 | 1.5 | 24 | 26 | 3 |
ZYZZ-OGM24 | M24 | M24*1.5 | 17 | 8 | 1.7 | 29 | 32 | 4 |
ZYZZ-OGM26 | M26 | M26*1.5 | 17 | 8.5 | 2 | 30 | 33 | 4 |
ZYZZ-OGM27 | M27 | M27*1.5 | 17 | 8.5 | 2 | 30 | 33 | 4 |
ZYZZ-OGM30 | M30 | M30*1.5 | 18.5 | 9 | 2 | 32 | 35 | 4 |
ZYZZ-OGM33 | M33 | M33*1.5 | 19.5 | 9 | 2 | 35 | 39 | 4 |
ZYZZ-OGM36 | M36 | M36*1.5 | 20.5 | 9.5 | 2 | 36 | 43 | 4 |
ZYZZ-OGM42 | M42 | M42*1.5 | 21 | 11 | 2 | 46 | 51 | 4 |
ZYZZ-OGM48 | M48 | M48*1.5 | 26 | 13 | 2 | 48 | 55 | 5 |
ZYZZ-OGM60 | M60 | M60*2 | 27.5 | 13.5 | 3.5 | 62 | 70 | 6 |
Aluminium oil sight glass non-standard(metric thread) | ||||||||
Ltem NO. | Size | A(mm) | L(mm) | L1(mm) | L2(mm) | D(mm) | ZZ(mm) | GLASS |
ZYZZ-OMF10 | M10 | M10*1.5 | 14 | 7.5 | 1 | 13 | 14 | 3 |
ZYZZ-OMF12 | M12 | M12*1.25 | 16 | 7.5 | 1.5 | 17 | 20 | 3 |
ZYZZ-OMF30 | M30 | M30*2 | 18.5 | 9 | 2 | 32 | 35 | 4 |
ZYZZ-OMF33 | M33 | M33*2 | 19.5 | 9 | 2 | 35 | 39 | 4 |
ZYZZ-OMF36 | M36 | M36*2 | 20.5 | 9.5 | 2 | 36 | 43 | 4 |
ZYZZ-OMF42 | M42 | M42*2 | 21 | 11 | 2 | 46 | 51 | 4 |
ZYZZ-OMF48 | M48 | M48*2 | 26 | 13 | 2 | 48 | 55 | 5 |
